DAE results with the old CDR

Analyse version 1.4

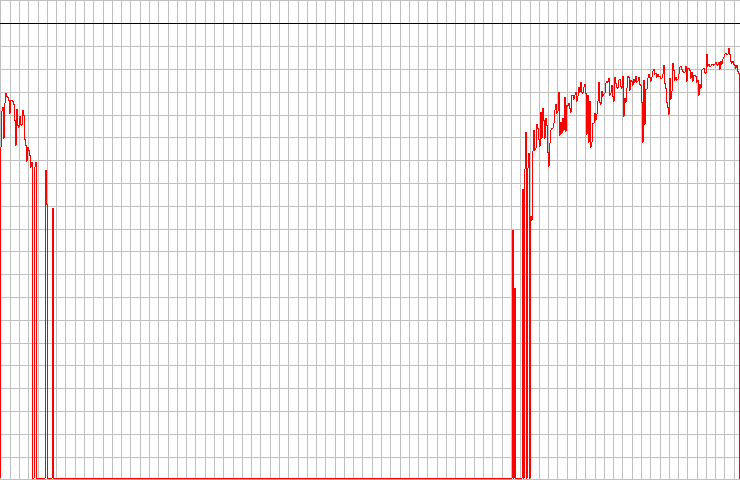

Memorex DVD Maxx 1648 firmware GWH2 DVD ROM

Errors total Num : 23893118
Errors (Loudness) Num : 374813 - Avg : -38.3 dB(A) - Max : -6.8 dB(A)
Error Muting Num : 2688925 - Avg : 2.4 Samples - Max : 1192 Samples
Skips Num : 0 - Avg : 0.0 Samples - Max : 0 Samples

Total Test Result : 67.8 points (of 100.0 maximum)
C2 Accuracy : 99.3 %

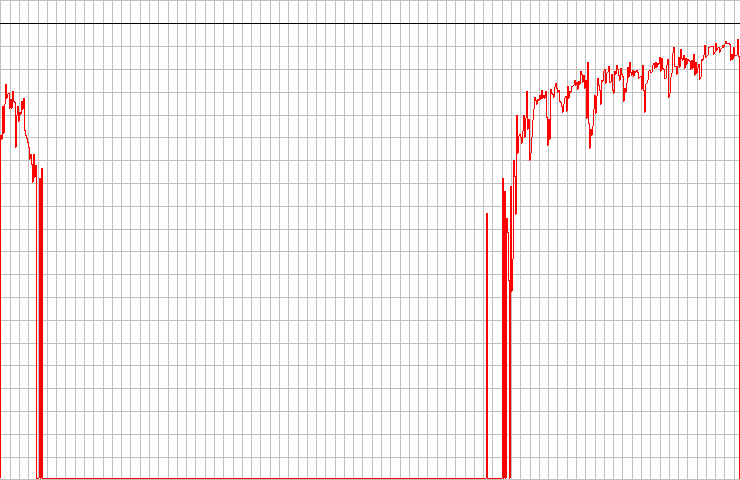

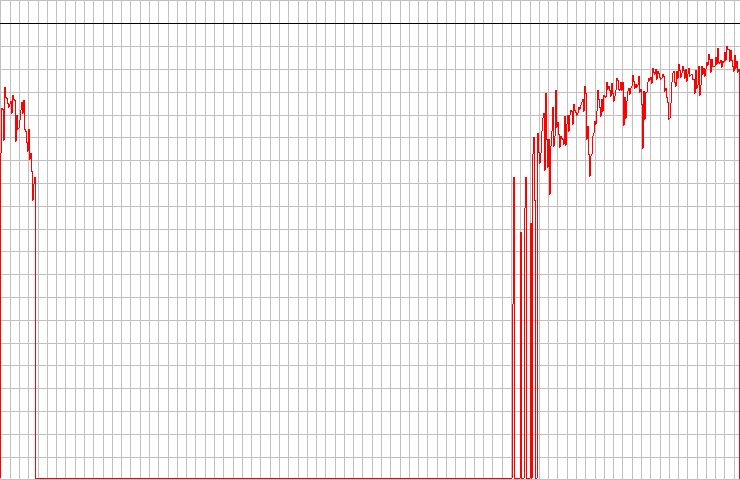

Sony DDU1621 DVD ROM firmware S1.6

Errors total Num : 20162385
Errors (Loudness) Num : 332763 - Avg : -39.0 dB(A) - Max : -6.1 dB(A)
Error Muting Num : 2188074 - Avg : 2.4 Samples - Max : 2169 Samples
Skips Num : 12 - Avg : 77.0 Samples - Max : 84 Samples

Total Test Result : 54.5 points (of 100.0 maximum)
C2 file lost

Sony DDU1621 DVD ROM firmware S1.6 (again, to get a new C2 file for analyse.exe 1.3)

Errors total Num : 42050327
Errors (Loudness) Num : 460825 - Avg : -35.1 dB(A) - Max : -4.5 dB(A)
Error Muting Num : 3664095 - Avg : 3.3 Samples - Max : 3583 Samples
Skips Num : 93 - Avg : 68.5 Samples - Max : 306 Samples

Total Test Result : 49.6 points (of 100.0 maximum)
C2 Accuracy : 87.5 %

Yamaha CRW3200EWK firmware 1.0d burner

Errors total Num : 20750018
Errors (Loudness) Num : 785288 - Avg : -47.2 dB(A) - Max : -5.8 dB(A)
Error Muting Num : 1589308 - Avg : 3.7 Samples - Max : 265 Samples
Skips Num : 0 - Avg : 0.0 Samples - Max : 0 Samples

Total Test Result : 67.0 points (of 100.0 maximum)

Teac CD 540E firmware 1.0a CD ROM

Errors total Num : 1992511
Errors (Loudness) Num : 224736 - Avg : -51.2 dB(A) - Max : -8.9 dB(A)
Error Muting Num : 90803 - Avg : 3.3 Samples - Max : 46 Samples
Skips Num : 0 - Avg : 0.0 Samples - Max : 0 Samples

Total Test Result : 71.1 points (of 100.0 maximum)
C2 Accuracy : 99.9 %

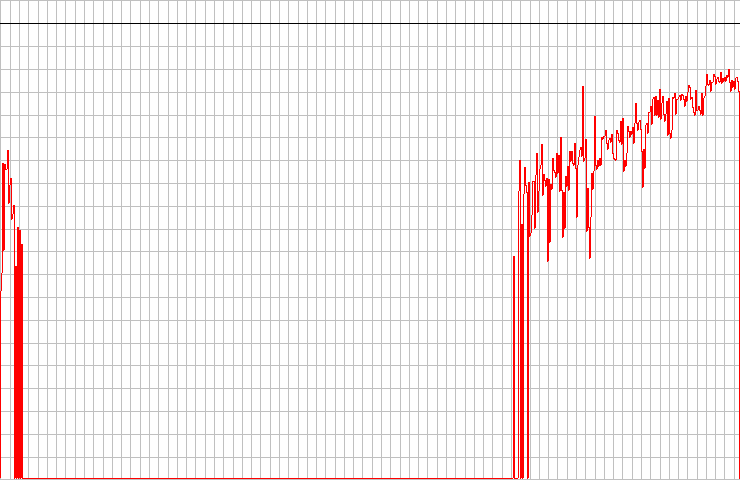

Teac CD 540E firmware 3.0a CD ROM

Errors total Num : 2080441
Errors (Loudness) Num : 237757 - Avg : -51.3 dB(A) - Max : -12.3 dB(A)
Error Muting Num : 93754 - Avg : 3.3 Samples - Max : 41 Samples
Skips Num : 0 - Avg : 0.0 Samples - Max : 0 Samples

Total Test Result : 71.0 points (of 100.0 maximum)
C2 Accuracy : 99.9 %

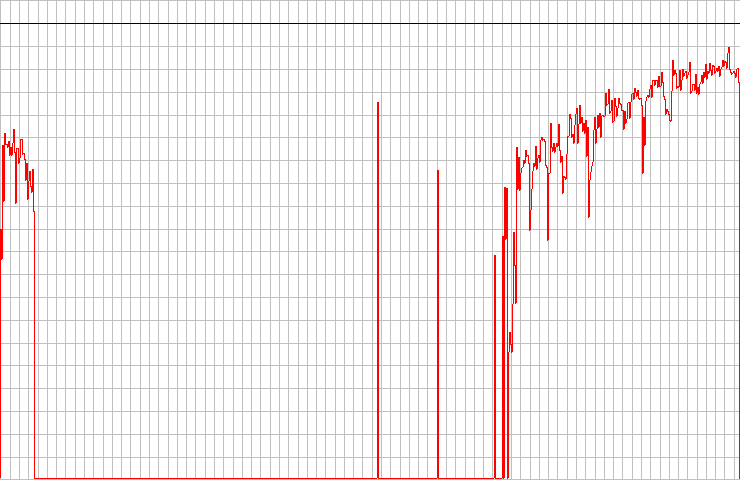

Yamaha CDX860 CD Player

Errors total Num : 9855105
Errors (Loudness) Num : 557112 - Avg : -49.2 dB(A) - Max : -6.4 dB(A)
Error Muting Num : 44954 - Avg : 6.3 Samples - Max : 112 Samples
Skips Num : 0 - Avg : 0.0 Samples - Max : 0 Samples

Total Test Result : 70.3 points (of 100.0 maximum)

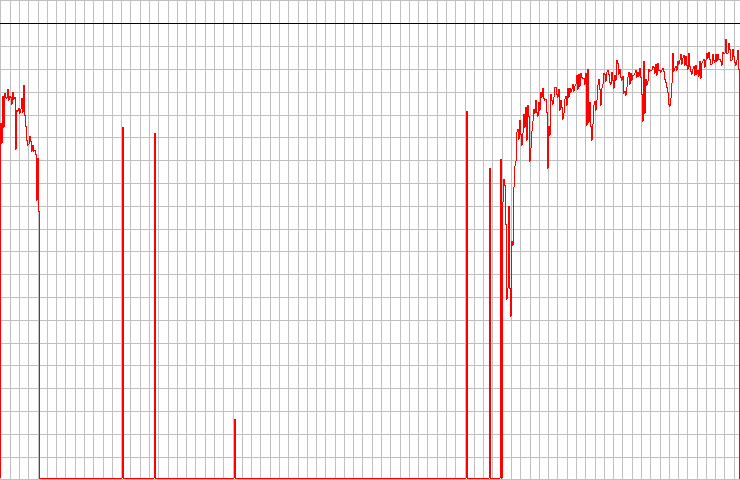

Memorex DVD Maxx 1648 firmware GWH2 DVD ROM SPDIF output

Errors total Num : 33844297
Errors (Loudness) Num : 449362 - Avg : -36.8 dB(A) - Max : -4.4 dB(A)
Error Muting Num : 3733257 - Avg : 2.8 Samples - Max : 3583 Samples
Skips Num : 4 - Avg : 246.0 Samples - Max : 270 Samples

Total Test Result : 53.4 points (of 100.0 maximum)
